A cylindrical shell calculator takes a function, an interval, and an axis of rotation, then returns the exact volume of the resulting solid — no manual integration required. If you've ever stared at a volume-of-revolution problem where the disk method would force you to invert a function or split the integral into ugly pieces, you already know why the shell method exists. It turns complicated setups into a single, clean integral: V = 2π ∫ (radius)(height) dx.
This article walks through the formula, shows three worked examples with real numbers, and explains when shells beat disks or washers.
The Problem Cylindrical Shells Solve
Suppose you want to revolve y = x² around the y-axis from x = 0 to x = 2. The disk method would require rewriting the function as x = √y and integrating from y = 0 to y = 4. That's doable, but what about y = x² + sin(x)? Inverting that is a nightmare. The shell method sidesteps the inversion entirely. You integrate with respect to x, the same variable your function is already written in.

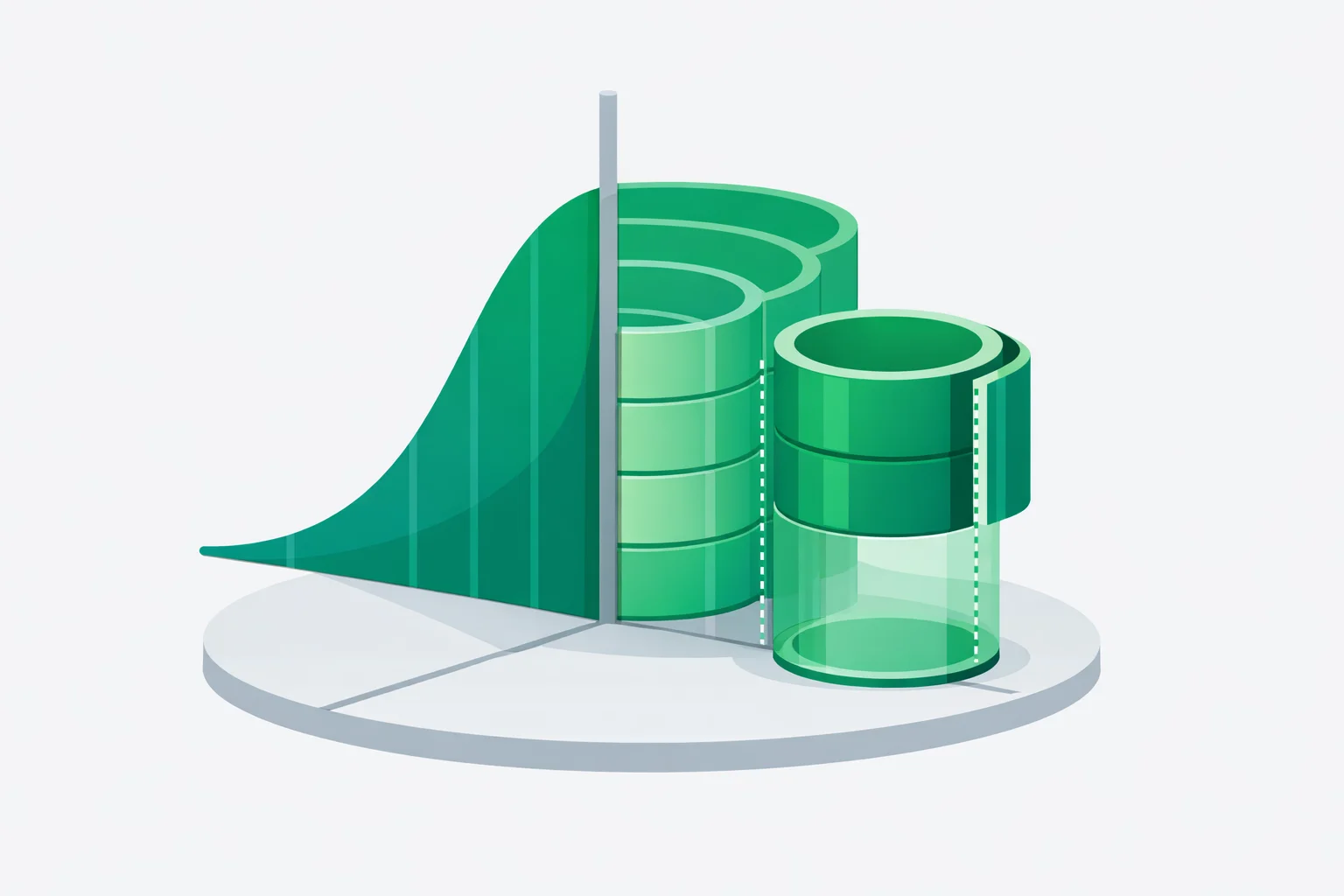

Picture cutting the solid into thin vertical strips. Each strip, when revolved, forms a hollow cylindrical shell — like peeling layers off an onion. The volume of one shell equals its circumference (2πr) times its height (f(x)) times a tiny thickness (dx). Sum all these infinitesimal shells from x = a to x = b, and you get the total volume.
The Shell Method Formula
For rotation around the y-axis:
For the region between two curves f(x) ≥ g(x):
For rotation around a vertical line x = c (instead of the y-axis), replace x with |x − c| as the radius. Everything else stays the same.
Shell Method vs. Disk Method vs. Washer Method
Choosing the right method saves time and prevents errors. Here's a quick decision framework:
| Scenario | Shell Method | Disk / Washer |
|---|---|---|
| Revolve around y-axis, function in x | Best choice | Requires inversion |
| Revolve around x-axis, function in x | Requires y-integration | Best choice |
| Function hard to invert (e.g., x³ + sin(x)) | Best choice | Impractical |
| Hollow solid (two boundary curves) | Use f(x) − g(x) | Use washers: π(R² − r²) |
| Rotation around x = c (vertical line) | Replace r with |x − c| | More complex setup |
When the axis of rotation is parallel to the variable of integration (e.g., revolving around the y-axis with f(x)), shells are almost always the cleaner path. Our shell method calculator and disk method calculator both handle these setups if you want to cross-check results.
Three Worked Examples
Example 1: y = x² from 0 to 2, around the y-axis
Radius = x. Height = x². Integrand = x · x² = x³.
That's the volume of the paraboloid bowl. With the disk method you'd integrate π ∫₀⁴ y dy = 8π — same answer, but you had to rewrite bounds and invert the function first.
Example 2: y = √x from 1 to 4, around x = 5
Radius = |x − 5| = 5 − x (since x < 5 on [1, 4]). Height = √x. Integrand = (5 − x)√x.
= 2π [10x^(3/2)/3 − 2x^(5/2)/5]₁⁴
= 2π [(80/3 − 64/5) − (10/3 − 2/5)]
= 2π [(400 − 192)/15 − (50 − 6)/15]
= 2π [208/15 − 44/15] = 2π(164/15)
≈ 68.6985
This problem would be painful with the disk method because the axis x = 5 is far from the curve, and you'd need to express x as a function of y twice.
Example 3: Region between y = x and y = x², around the y-axis (0 to 1)
Height = x − x² (upper minus lower). Radius = x.
= 2π [x³/3 − x⁴/4]₀¹ = 2π(1/3 − 1/4) = 2π(1/12)
= π/6 ≈ 0.5236
The washer method calculator can verify this: π ∫₀¹ [(√y)² − y²] dy = π ∫₀¹ (y − y²) dy = π/6. Both give the same answer — shells just skip the inversion step.
Four Mistakes That Cost Points on Exams
- Forgetting the 2π. The integral ∫ x·f(x) dx gives the weighted sum, not the volume. You must multiply by 2π. Leaving it off halves your answer on every problem.
- Wrong radius for off-axis rotation. When rotating around x = c, the radius is |x − c|, not just x. For x = 5, the radius at x = 2 is 3, not 2.
- Swapping which function is on top. If g(x) > f(x) somewhere in [a, b], the height goes negative and the integral produces a wrong (or negative) volume. Always verify which curve is higher on the entire interval.
- Using shells when you should use disks. If the axis of rotation is perpendicular to your integration variable (e.g., revolving f(x) around the x-axis), you'd need to rewrite everything in terms of y. Disks are the direct approach there.
Common Shell Integrals — Quick Reference
These closed-form results are handy for checking calculator output or exam answers.
| f(x) | Bounds | Axis | Volume |
|---|---|---|---|
| xⁿ | [0, R] | y-axis | 2πR^(n+2)/(n+2) |
| √x | [0, R] | y-axis | 4πR^(5/2)/5 |
| sin(x) | [0, π] | y-axis | 2π² |
| eˣ | [0, 1] | y-axis | 2π |
| 1/x | [1, b] | y-axis | 2π(b − 1) |
| R − x | [0, R] | y-axis | πR³/3 |
When to Reach for the Cylindrical Shell Calculator
Not every volume problem needs a cylindrical shells calculator. Here are the scenarios where it genuinely saves time:
- Homework spot-check. You worked it by hand and got 14.3π — plug the same function into the calculator to confirm before submitting.
- Functions you can't invert. Anything with mixed terms like x² + ln(x) or x·sin(x) is impractical to invert for the disk method. Shells handle them natively.
- Off-axis rotation. Rotating around x = 3 instead of the y-axis? The calculator adjusts the radius formula automatically.
- Comparing methods. Run the same problem through this cylindrical shell calculator and the volume of revolution calculator to verify both give the same answer — a great study technique.
For problems involving rotation around the x-axis, the disk method calculator is the direct path — it integrates π[f(x)]² dx without needing to rewrite your function.
