Vector Magnitude Calculator: ‖v‖ = √(x² + y² + z²), Explained
About the Author
Marko Šinko
Co-Founder & Lead Developer, AI Math Calculator
Every vector magnitude calculator runs the same three moves: square each component, add the squares, take the square root of the sum. For v = ⟨2, 3, 6⟩ that’s 4 + 9 + 36 = 49, and √49 = 7. The vector is exactly 7 units long. No trig, no matrices — one line of arithmetic that works identically in two dimensions, three, or three hundred.
The tool above accepts 2D and 3D components, an n-dimensional comma list, or two points A and B (it builds v = B − A first). It returns the magnitude as a decimal and — for integer inputs — as an exact simplified radical like √50 = 5√2, plus the squared magnitude, the unit vector, and a comparison against two other norms. The rest of this page is the part the tool can’t do for you: where the formula comes from, which component combinations give whole-number answers, what magnitude means once units are attached, and the four errors that produce confident wrong answers.
One Formula, Any Number of Dimensions
In 2D the magnitude of v = ⟨x, y⟩ is ‖v‖ = √(x² + y²). In 3D it grows one term: ‖v‖ = √(x² + y² + z²). In n dimensions it keeps growing the same way — square everything, add, root. Textbooks write it as |v|, ‖v‖, or ‖v‖₂; they all mean the same number, and the words magnitude, length, Euclidean norm, and L2 norm are four names for it. If a homework problem says “norm” and your notes say “magnitude,” nothing is different.
One identity is worth memorizing early: ‖v‖² = v · v. Dot a vector with itself and every cross term disappears, leaving exactly the sum of squares. That’s why the dot product shows up inside almost every magnitude proof — and why squared magnitude, not magnitude, is what physics formulas like kinetic energy (½mv²) actually consume. Skipping the square root isn’t laziness there; the square is the quantity being used.
Inside a Vector Magnitude Calculator: Pythagoras, Run Twice

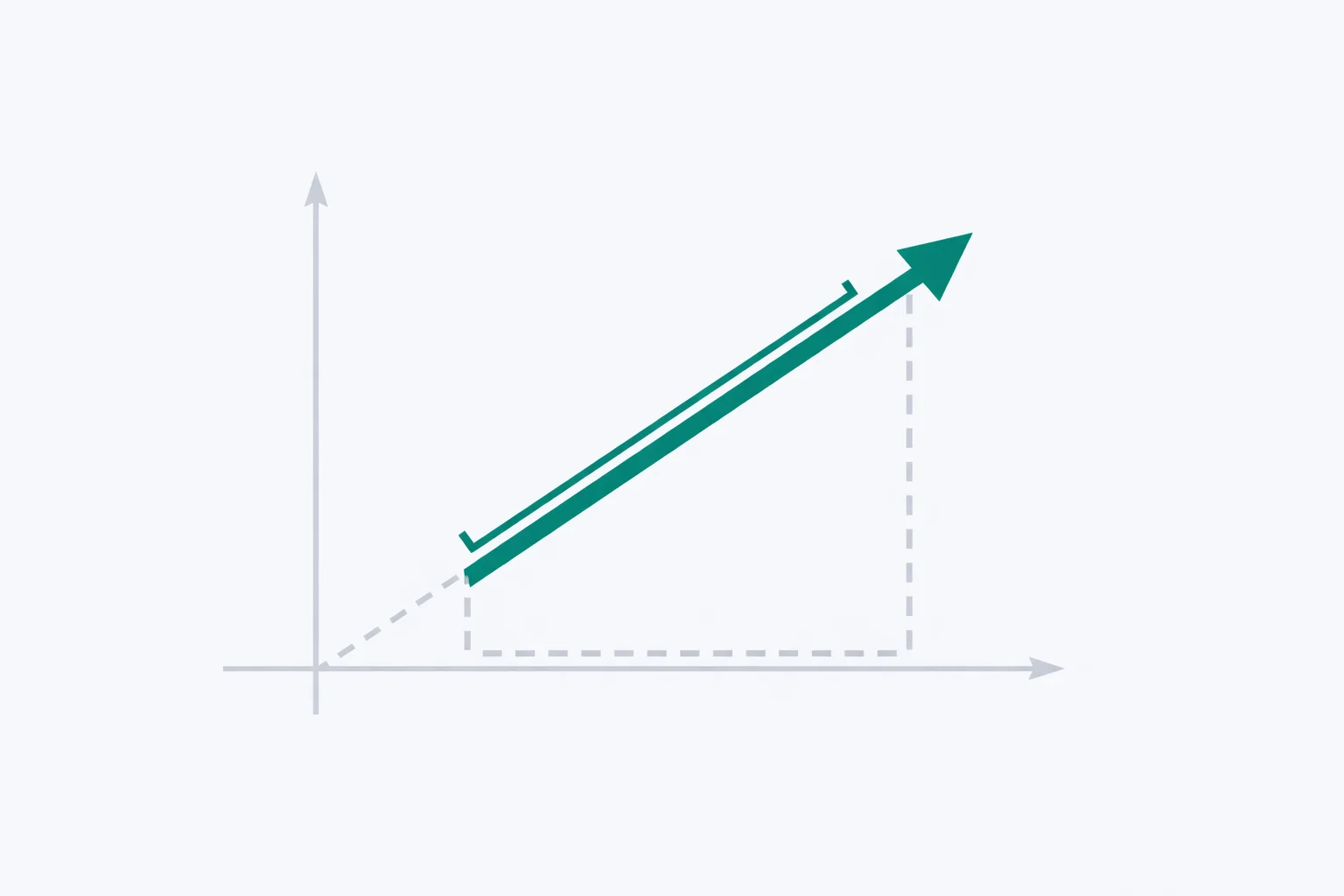

The 2D formula is the Pythagorean theorem wearing vector notation. Draw ⟨x, y⟩ from the origin, drop a vertical line to the x-axis, and you’ve built a right triangle with legs x and y — the vector is the hypotenuse, so its length is √(x² + y²).
The 3D formula is the same theorem applied twice. Take v = ⟨1, 4, 8⟩. First flatten it onto the floor: the shadow ⟨1, 4⟩ has length √(1² + 4²) = √17. That shadow is now one leg of a second right triangle whose other leg is the vertical component, 8. Pythagoras again: ‖v‖ = √((√17)² + 8²) = √(17 + 64) = √81 = 9. The inner square root cancels against its square, which is why the final formula reads as if you’d squared all three components in one pass — you did, just in two stages. And because each new dimension only ever adds one more leg to stack, the formula extends to 4D, 5D, or the 300-dimensional vectors of a machine learning model without changing shape.
Magnitude Is Distance in Disguise
The distance between two points is the magnitude of the vector connecting them. Given A(3, −1, 2) and B(5, 2, 8), subtract coordinates to get v = B − A = ⟨2, 3, 6⟩, then take the magnitude: √(4 + 9 + 36) = 7. That’s the entire distance formula — d = √((x₂−x₁)² + (y₂−y₁)² + (z₂−z₁)²) is nothing but ‖B − A‖ written out componentwise. The two-points mode in the calculator above does exactly this subtraction before rooting.
This identity is also the cleanest way to think about displacement in physics: a particle that moves from A to B has displacement vector B − A, and the straight-line distance it ended up from its start is that vector’s magnitude — regardless of the path taken. For the arithmetic around it (adding displacements, scaling, components), a full vector calculator covers the operations this page deliberately leaves out.
The Vectors Teachers Love: Whole-Number Magnitudes
Most vectors have irrational lengths — ⟨1, 1⟩ gives √2, ⟨1, 2, 3⟩ gives √14. But certain integer combinations land on whole numbers, and textbook authors reuse them constantly because they keep the arithmetic clean. Recognizing them on sight tells you instantly whether your answer should have come out clean:
| Dimension | Vector (any signs, any order) | ‖v‖ |
|---|---|---|
| 2D | ⟨3, 4⟩ · ⟨6, 8⟩ · ⟨9, 12⟩ | 5 · 10 · 15 |
| 2D | ⟨5, 12⟩ | 13 |
| 2D | ⟨8, 15⟩ | 17 |
| 2D | ⟨7, 24⟩ | 25 |
| 3D | ⟨1, 2, 2⟩ | 3 |
| 3D | ⟨2, 3, 6⟩ | 7 |
| 3D | ⟨1, 4, 8⟩ · ⟨4, 4, 7⟩ | 9 · 9 |
| 3D | ⟨2, 6, 9⟩ · ⟨6, 6, 7⟩ | 11 · 11 |
| 3D | ⟨3, 4, 12⟩ | 13 |
The 3D rows are called Pythagorean quadruples, the 3D cousins of the 3-4-5 triangle. Two useful facts: scaling preserves them (⟨1, 2, 2⟩ has length 3, so ⟨5, 10, 10⟩ has length 15), and signs never matter because squaring erases them — ⟨−2, 3, −6⟩ is still 7 units long. If an exam vector matches a row of this table and your answer is irrational, a sign or a square went wrong somewhere.
Ground Speed and Resultant Force: Magnitude Carries the Units
Once a vector has physical meaning, its magnitude inherits the units of the components. A plane flying with velocity ⟨220, 60⟩ mph — 220 mph east, 60 mph north — has ground speed √(220² + 60²) = √52,000 ≈ 228.04 mph. Notice what didn’t happen: the speeds didn’t add to 280. Perpendicular components combine through squares, so the crosswind component costs far less than intuition expects; 60 mph of sideways motion raised the total by barely 8 mph.
Forces work the same way. Pull a crate with 30 N east while a rope pulls it 40 N north, and the resultant — the single force with the same effect — has magnitude √(900 + 1600) = 50 N. Building that resultant is a vector addition problem; measuring it is a magnitude problem. And when a question asks for “a 50 N force in the direction of v,” that’s the reverse operation — divide v by its magnitude to get a unit vector, then multiply by 50. Magnitude and direction are the two halves every vector splits into, and this page is the magnitude half.
Manhattan, Euclidean, Chebyshev: Three Answers to “How Long?”
The Euclidean norm is the default meaning of length, but it’s not the only self-consistent one. Take v = ⟨3, −4⟩ and measure it three ways:
| Norm | Rule for ⟨3, −4⟩ | Result | Models movement like… |
|---|---|---|---|
| Manhattan (L1) | |3| + |−4| = 7 | 7 | A taxi on a street grid — no diagonals |
| Euclidean (L2) | √(9 + 16) = 5 | 5 | A crow flying straight to the target |
| Chebyshev (L∞) | max(|3|, |−4|) = 4 | 4 | A chess king — diagonal steps are free |
Each earns its keep somewhere specific. Warehouse robots and PCB routers plan in Manhattan distance because they physically can’t cut corners. Machine learning uses L1 when it wants sparse solutions and L2 when it wants smooth ones. Chessboard and grid-game logic runs on Chebyshev, where a diagonal move costs one step, not √2. The ordering ‖v‖∞ ≤ ‖v‖₂ ≤ ‖v‖₁ holds for every norm-worthy vector — so if you ever compute a “Manhattan distance” smaller than the straight-line distance, one of the two is wrong. The calculator above prints all three side by side for exactly that sanity check.
Four Ways the Answer Comes Out Wrong
1. The −3² trap. Type -3^2 into most calculators (TI-84 included) and you get −9, because squaring binds tighter than negation. The formula needs (−3)² = 9. Symptom: a sum of squares smaller than it should be, sometimes even negative — and a magnitude is never allowed to involve a negative under the root, since every properly squared term is ≥ 0.
2. Reporting ‖v‖² instead of ‖v‖. Under time pressure, 4 + 9 + 36 = 49 gets written down as the answer. A quick plausibility check catches it: the magnitude can never exceed the sum of the absolute components (49 > 2 + 3 + 6 = 11, so 49 is impossible) and never falls below the largest one.
3. Adding magnitudes instead of vectors. ‖a + b‖ ≠ ‖a‖ + ‖b‖ except when the vectors point the same way. With a = ⟨3, 0⟩ and b = ⟨0, 4⟩, the magnitudes sum to 7, but ‖a + b‖ = ‖⟨3, 4⟩‖ = 5. The triangle inequality guarantees the true value is always ≤ the sum — walking two sides of a triangle is never shorter than the third.
4. Squaring first in software. In floating-point code, x² overflows to infinity once x passes about 1.3 × 10¹⁵⁴, so sqrt(x*x + y*y) returns inf for values a physics simulation can legitimately produce. Every major language ships a hypot(x, y) function that rescales internally to dodge the overflow — it’s what this page’s calculator uses, and it’s the reason you can feed it components like 10²⁰⁰ and still get the right answer while the displayed ‖v‖² shows as infinite.
