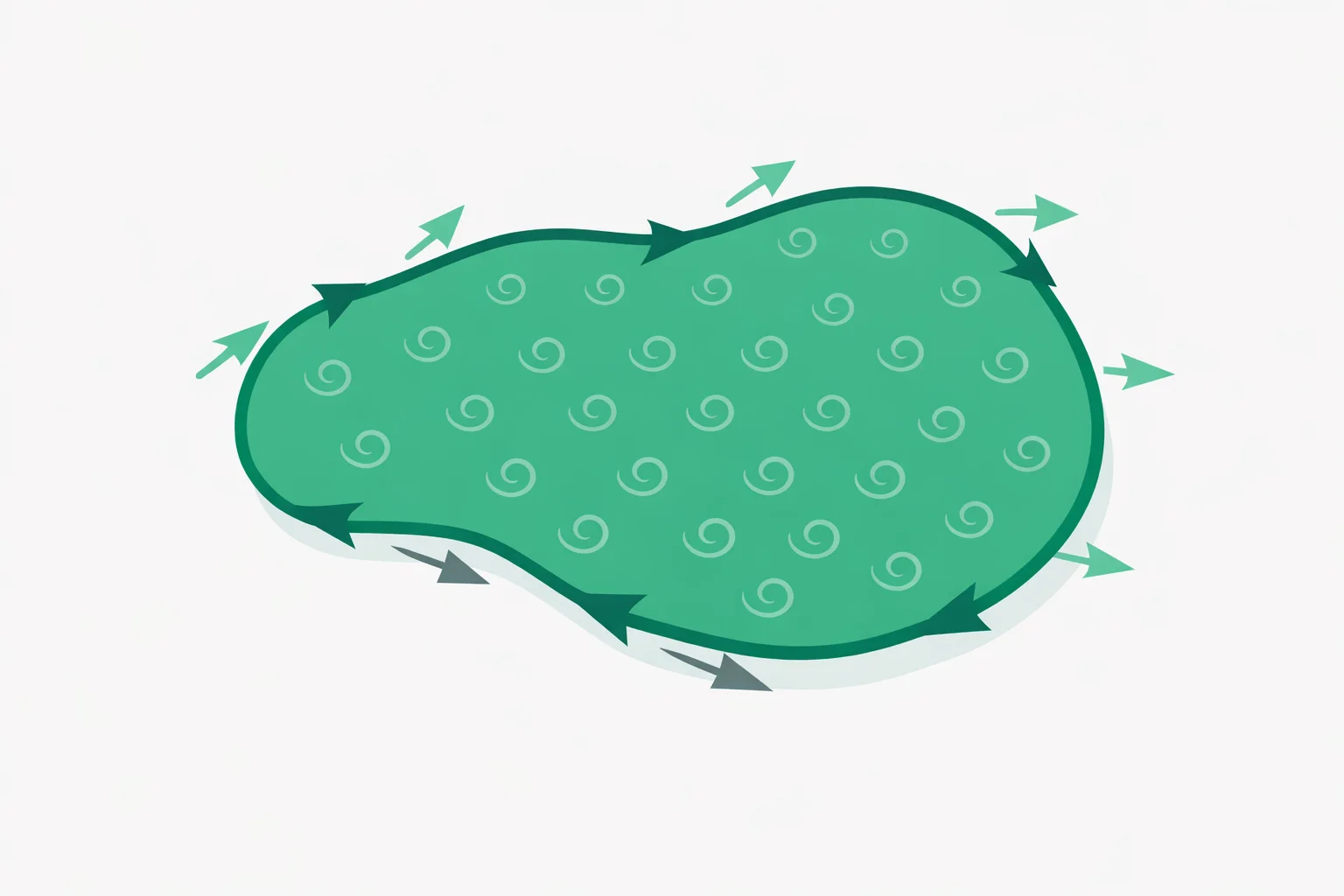

A Green's theorem calculator trades a line integral around a closed loop for a double integral over the flat region the loop encloses — and the version above runs both sides so you can watch them meet at the same number. There's a twist most tools skip: Green's theorem actually comes in two flavors, a circulation form built on the curl and a flux form built on the divergence. This calculator evaluates both at once, then throws in the region's area computed straight from its edge. Type ⟨−y, x⟩ over the unit disk and you get circulation 2π, flux 0, and an area of π — three results from one boundary.
Below I'll unpack what each form measures, when to grab one over the other, why the orientation of C decides the sign, and the single hypothesis that — when broken — makes the whole identity collapse. Expect concrete numbers, not hand-waving.
Green's theorem wears two hats: circulation and flux
Most textbooks lead with one equation and bury the other in an exercise. Both deserve top billing. The circulation (or curl) form reads ∮C P dx + Q dy = ∬D (∂Q/∂x − ∂P/∂y) dA. It measures how much the field swirls along the boundary, and the integrand ∂Q/∂x − ∂P/∂y is the scalar curl — the z-component of ∇×F for a planar field. The flux (or divergence) form reads ∮C P dy − Q dx = ∬D (∂P/∂x + ∂Q/∂y) dA, and it measures how much the field flows outward through the boundary, with the integrand being the divergence ∇·F.
Same field, same region, two different questions. For the rotation field ⟨−y, x⟩ on a disk of radius 2, the scalar curl is a constant 2, so circulation equals 2 × (area 4π) = 8π ≈ 25.13, while the divergence is 0, so the net flux is exactly 0 — the field spins but nothing leaks out. Swap to the radial field ⟨x, y⟩ and the numbers flip: divergence is 2, flux equals 8π, circulation is 0. The calculator shows both columns side by side, so this contrast is impossible to miss. To isolate just one quantity, a dedicated curl calculator or divergence calculator reports the integrand alone.
Why convert at all? Pick the easier integral
The whole point is laziness in the good sense. A line integral around a square forces you to break C into four pieces, parametrize each edge, and add four separate integrals — tedious and error-prone. Green's theorem collapses that into one double integral over the square's interior. Run F = ⟨x², xy⟩ around the unit square [0,1]×[0,1] by hand and you fight four parametrizations; through the curl form you integrate ∂(xy)/∂x − ∂(x²)/∂y = y − 0 = y over the square, which is just ∫₀¹∫₀¹ y dx dy = ½. One clean step.
The trade runs both directions. When the region is ugly but the boundary is a tidy circle, push the other way and evaluate the loop instead. The decision rule is simple: if the integrand ∂Q/∂x − ∂P/∂y simplifies to something easy (a constant, a single variable), go to the double integral; if the boundary is one smooth curve and the interior integrand is a mess, stay on the line. This is the same bridge a line integral calculator and a double integral calculator sit on opposite ends of.
The area trick: measuring a region by walking its edge
Here's the feature that earns Green's theorem a spot in surveying equipment. Choose P = −y/2 and Q = x/2. Then ∂Q/∂x − ∂P/∂y = ½ + ½ = 1, so the double integral ∬D 1 dA is simply the area of D. The circulation form therefore says Area = ½ ∮C (x dy − y dx). You can find the area of any region by traveling once around its boundary — never touching the interior.
That's exactly how a planimeter works: trace a shape on a map with the arm of the device, and a wheel integrates x dy − y dx to read off the enclosed area. The calculator reports this boundary-derived area next to the region's exact area so you can see them agree — π for the unit disk, 6 for a 3×2 rectangle, ½·base·height for a triangle. It's a satisfying sanity check that the numerical integration is faithful.
Counter-clockwise, region on your left — or the sign flips
Green's theorem is stated for positive orientation: walk the boundary so the region stays on your left, which for a simple region means counter-clockwise. Reverse direction and every term changes sign, turning a correct +8π into a wrong −8π. The calculator builds each boundary counter-clockwise for you, so the two sides are guaranteed to be set up consistently. When you compute by hand and land on the right magnitude with the wrong sign, the orientation of C is the first thing to check.
Regions with holes need extra care: the outer boundary runs counter-clockwise, but any inner boundary around a hole must run clockwise, so that the region stays on your left along both. Skip that rule and an annulus calculation quietly doubles or cancels in the wrong place.
What the Green's Theorem Calculator shows: four fields on one disk
Here's the comparison the calculator reproduces for the unit disk (area π), each field evaluated in both forms. Notice how a pure rotation puts all its content into circulation, a pure source puts all of it into flux, and a conservative field has neither:
| Field ⟨P, Q⟩ | Scalar curl Qx−Py | Circulation ∮ F·dr | Divergence Px+Qy | Flux ∮ F·n ds |
|---|---|---|---|---|
| ⟨−y, x⟩ rotation | 2 | 2π ≈ 6.283 | 0 | 0 |
| ⟨x, y⟩ outward flow | 0 | 0 | 2 | 2π ≈ 6.283 |
| ⟨y, 0⟩ shear | −1 | −π ≈ −3.142 | 0 | 0 |
| ⟨2xy, x²⟩ conservative | 0 | 0 | 2y | 0 |
The last row rewards a pause. The field ⟨2xy, x²⟩ is the gradient of x²y, so its scalar curl is zero and its circulation around any closed loop vanishes — the hallmark of a conservative field. Its divergence is 2y, but the disk is symmetric about y = 0, so the positive and negative halves cancel and the flux is zero too. Symmetry, not the theorem, kills that one.
The one hypothesis that breaks everything: smoothness
Green's theorem demands that P, Q, and their first partial derivatives stay continuous on the closed region D — boundary included. Violate that and the calculator's amber "mismatch" badge lights up. The textbook counterexample is the vortex F = ⟨−y/(x²+y²), x/(x²+y²)⟩. Its scalar curl is zero everywhere it's defined, so the double integral over a disk looks like it should be 0 — yet the line integral around the unit circle stubbornly returns 2π. The catch is the singularity at the origin, where the field is undefined and the curl isn't actually zero in any usable sense. The region D contains a point where the hypotheses fail, so the identity simply doesn't apply.
The fix is to exclude the bad point — cut a tiny hole around the origin and orient its inner boundary clockwise — which is precisely how the theorem extends to regions with holes. A mismatch almost never means Green's theorem is wrong; it means a singularity slipped inside D, a component is discontinuous, or the boundary was walked the wrong way. This same smoothness condition is what its 3D big brother, Stokes' theorem, inherits.
Where Green's theorem sits in the family
Green's theorem is the flat, two-dimensional ancestor of two famous results. Lift the region out of the plane onto a curved surface and the circulation form becomes Stokes' theorem, ∮C F·dr = ∬S (∇×F)·n dS. Keep the flux form and push it into three dimensions and it becomes the divergence theorem, where outward flux through a closed surface equals the volume integral of the divergence. All three say the same structural thing: integrate a derivative over a region, or integrate the original quantity over that region's boundary, and you land on identical numbers. Knowing which one to reach for — circulation, outward flux, or enclosed area — is a large slice of vector calculus. For the formal statement and proof, the Green's theorem reference is a good next stop, and a quick pass through a flux calculator sharpens the contrast between flow across an edge and swirl around it.
